Facebook Ad Image Sizes: Complete 2026 Placement Guide

August 21, 2026

facebook ad image sizes

meta ad dimensions

facebook ad specs

ad creative sizes

facebook image ratios

Facebook Ad Image Sizes: Complete 2026 Placement Guide

You've exported the creative, named the files, and uploaded them to Ads Manager. Then the preview shows the headline under a button, the product cropped at the edge, or a key line of text hidden behind placement controls. The problem usually isn't the idea. It's that one image was asked to do the job of several different canvases.

The practical answer to Facebook ad image sizes isn't “pick one number and use it everywhere.” You need a small, controlled system built around Meta's core ratios, placement-aware safe zones, predictable compression, and export presets your team can reuse. The current production set is straightforward: 1:1 for square assets, 4:5 for feed, and 9:16 for Stories and Reels. The challenge is applying those specifications without creating a manual resizing bottleneck.

Why Standardized Ratios Matter for Meta Ads
- Build around ratios, not individual placements
- A standardized workflow reduces friction
The Three Core Aspect Ratios Explained
Facebook and Instagram Feed Image Specifications
Stories and Reels Full-Screen Vertical Specs
Carousel and Multi-Image Ad Formats
Safe Zones and Text Placement Guidelines
- Use a placement-aware hierarchy
- Reduce mobile reading effort
File Formats, Compression, and Upload Validation
- Compression failure points
- Validate before Ads Manager
Export Presets and Production Workflow Tips
Quick Reference Checklist for Production Teams

Why Standardized Ratios Matter for Meta Ads

Media buyers lose time when every placement gets treated as a special case. A designer creates a square image, someone crops it for Stories, another person adjusts the headline for Reels, and the final upload contains files with inconsistent framing. That workflow creates avoidable review cycles and makes it harder to identify whether a creative concept failed or the crop failed.

Meta's current ecosystem has converged around a small group of aspect ratios. Feed ads commonly use 1:1 or 4:5, while full-screen Stories and Reels use 9:16, as documented in the 2026 Meta placement sizing guide. These ratios map to how people encounter the placements. A feed image sits inside a scrolling column, while a Story or Reel fills a phone screen from edge to edge.

Build around ratios, not individual placements

The ratio is the reusable production decision. The placement is where that file gets delivered.

A square master can support feed, carousel, and other square inventory. A 4:5 version gives the feed composition more vertical room on mobile. A 9:16 version is a separate full-screen design, not merely a taller crop of the feed asset.

This distinction matters because automatic cropping can preserve the subject while destroying the hierarchy. A product may remain visible, but the benefit statement, price area, or logo can disappear. Meta may still accept the file, yet the ad can become materially less clear.

Practical rule: Treat each ratio as a deliberate composition. Don't treat resizing as an afterthought.

A standardized workflow reduces friction

Create templates with fixed canvases, named safe zones, and locked brand elements. Then produce the same concept in each required ratio before you open Ads Manager. This approach keeps the creative idea consistent while allowing the composition to change where the screen shape demands it.

Use the 4:5 feed file as the default starting point when mobile feed delivery is central. Keep 1:1 available for square inventory and carousel work, and create 9:16 whenever Stories or Reels are part of the campaign rather than relying on an automatic crop.

The Three Core Aspect Ratios Explained

Three ratios cover the main image-production decisions for Meta campaigns: 1:1, 4:5, and 9:16. Each one solves a different layout problem, so the right choice depends on the placement and the source material.

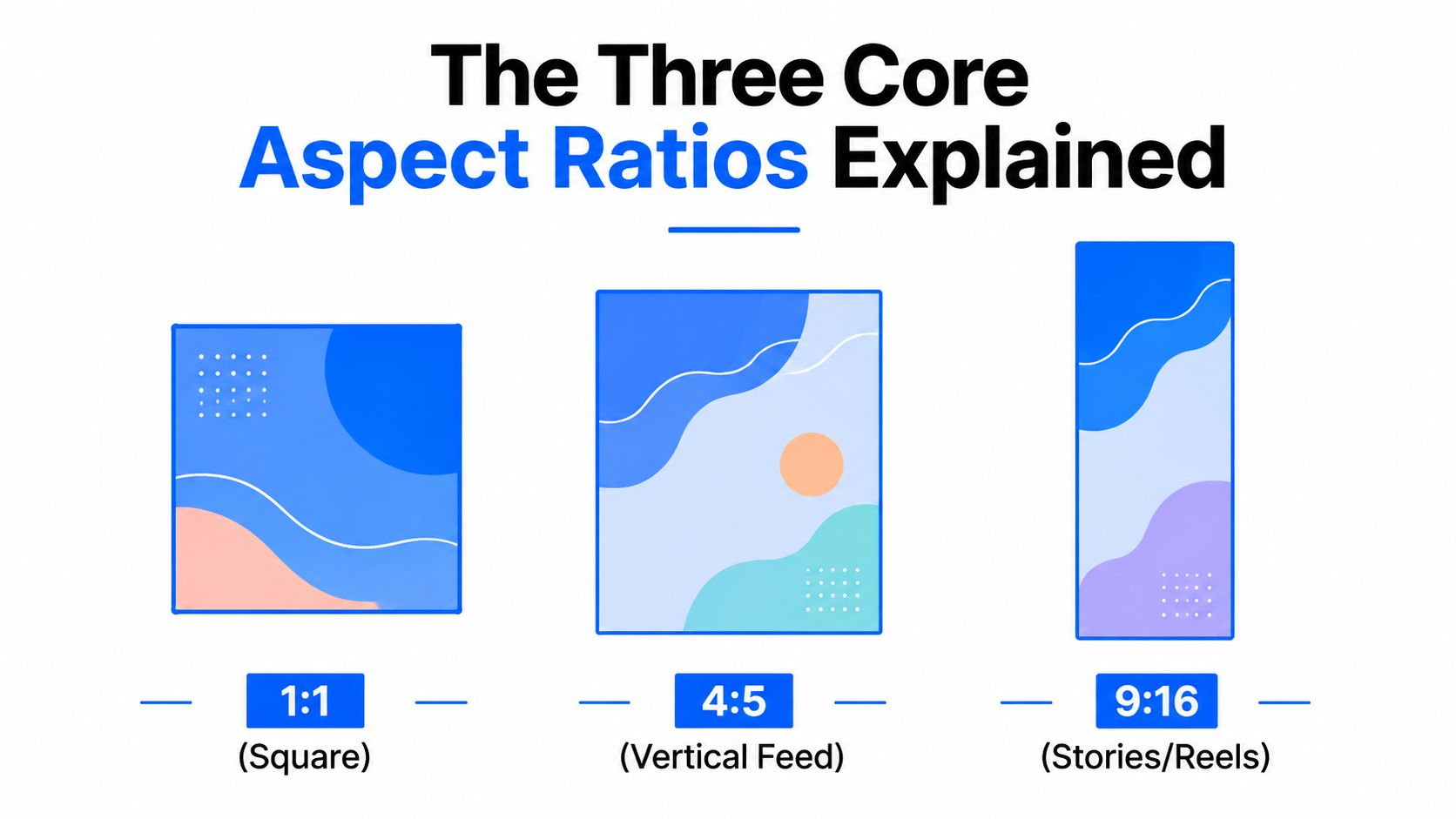

A graphic illustration demonstrating the three core social media aspect ratios: 1:1, 4:5, and 9:16.

1:1 square

The 1:1 ratio is the dependable general-purpose format. Its balanced canvas works well when the creative needs to support several square-friendly placements, when a product image has a centered composition, or when the team is testing a concept before investing in placement-specific variants.

Square also remains important for carousel cards. Consistency matters more than squeezing extra height into one card because users experience the carousel as a sequence. If the first card is tightly framed and the next card has a different crop, the swipe experience feels unplanned.

4:5 vertical feed

The 4:5 ratio gives feed creative more vertical presence than a square while remaining compatible with feed inventory. Current guidance identifies 1080 × 1350 px as the primary feed recommendation because a taller image can use more screen space on mobile and reduce unnecessary cropping risk, as explained in this Meta ad size reference.

Use 4:5 when the message benefits from stacked information, a taller product shot, or a stronger visual entrance as the user scrolls. It's particularly useful for ecommerce layouts with a product, a short benefit line, and a clear visual action cue.

9:16 full-screen vertical

The 9:16 ratio is built for Stories and Reels. It fills the screen and gives you room for a vertical narrative, but that extra space comes with more interface risk. A design that looks balanced in a feed preview may feel cramped once controls and calls to action sit over it.

The decision is simple. Use 1:1 for versatility and square card systems, 4:5 for feed-first image ads, and 9:16 when you're intentionally designing for full-screen consumption. Don't force one ratio to carry every job.

A short visual walkthrough can help teams compare the canvas shapes before they create templates.

Facebook and Instagram Feed Image Specifications

Feed production runs more reliably when the team separates the recommended canvas from the smallest accepted file. Use 1080 × 1080 px for 1:1 and 1080 × 1350 px for 4:5. JPG and PNG are standard choices for static image delivery, with a 30 MB file-size cap for image assets, according to the current Meta image size guidance.

The practical floor is 600 px on the shortest side, but a minimum-size upload can still look soft after platform processing. Small type, thin rules, and detailed packaging are especially vulnerable. Set export presets at the recommended dimensions so production teams are not rebuilding files after an upload warning.

Feed specification table

Aspect Ratio	Dimensions	Use Case	File Size Limit
1:1	1080 × 1080 px	Square feed creative, carousel cards, versatile asset systems	30 MB
4:5	1080 × 1350 px	Primary mobile feed creative, taller product and message layouts	30 MB

The 4:5 file should usually be your feed-first export. Its taller frame gives the layout more vertical room, but it does not repair weak composition. A product placed close to the left or right edge may become more exposed in the taller version, so check the subject position before approving a master template.

Export for clarity

Start with a clean, high-resolution source and size text for mobile viewing, not just for the design-tool canvas. Export JPG for photographic artwork where efficient compression matters. Choose PNG when sharp text, flat color, or hard graphic edges carry the design, then compare the file size against the upload limit.

Inspect the exported file before uploading. Check for ringing around type, muddy shadows, gradient banding, and softened logos. A source file can look clean while the compressed export introduces defects that reduce readability.

What mismatched files do

Meta may crop an image for a selected placement, or Ads Manager may warn that the asset does not match the recommended ratio. Uploading can still continue, but the preview shows what viewers may receive. If cropping removes the subject or changes the reading order, use a placement-specific export rather than relying on automatic framing.

Keep both ratios in the team's export preset library. That simple setup reduces last-minute resizing and makes it easier to compare the same concept across feed placements before launch.

Stories and Reels Full-Screen Vertical Specs

Stories and Reels image ads use the 9:16 format at 1080 × 1920 px, the established full-screen vertical specification in current placement guides. That canvas gives you an immersive layout, but it also places the creative under interface elements that vary by placement and viewer context.

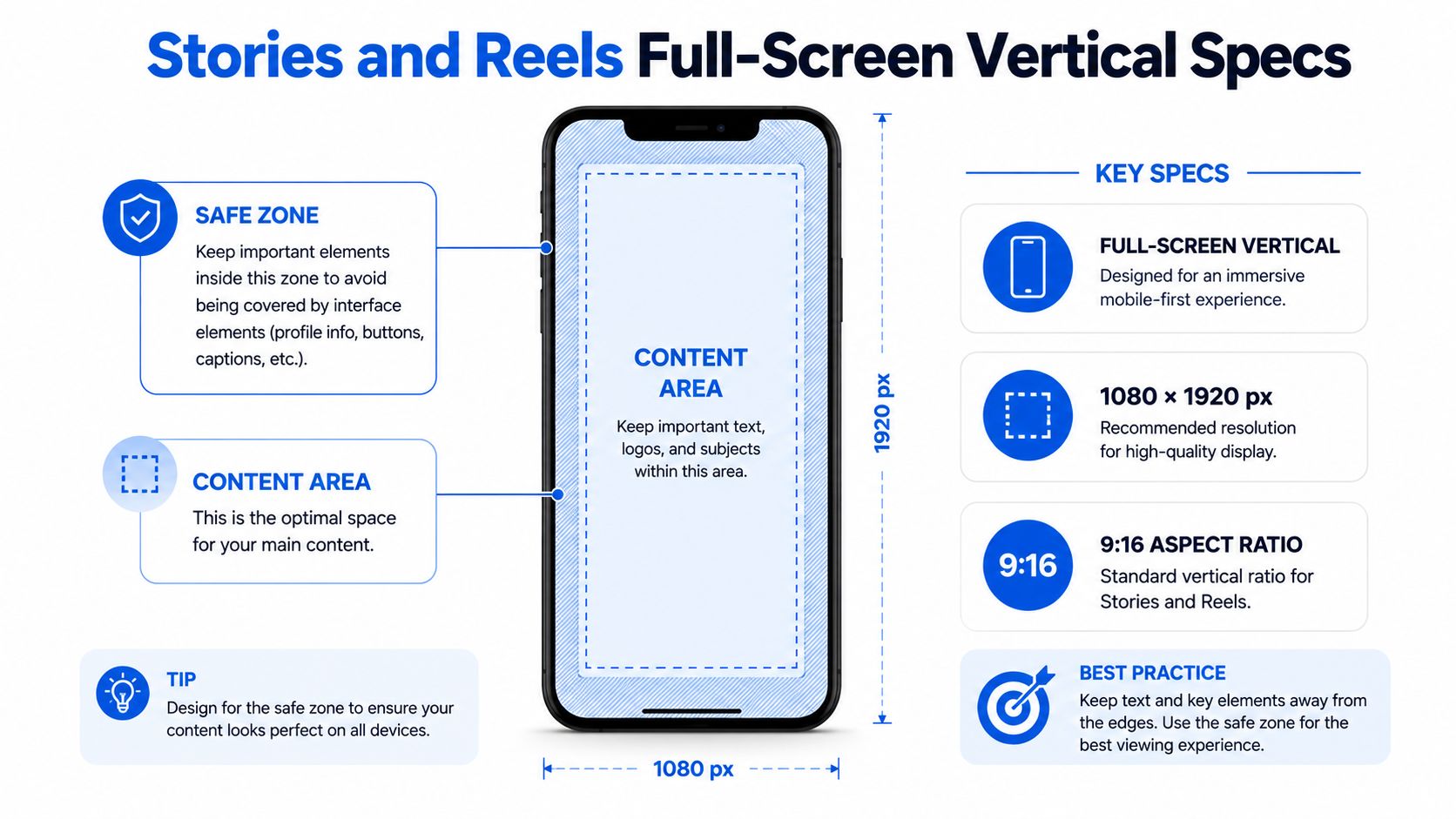

An infographic detailing the full-screen vertical specifications for social media Stories and Reels dimensions and safe zones.

A common production error is to put the strongest line at the top because the top looks visually open in the design file. Story controls, account information, and progress indicators can occupy that area. The bottom is also vulnerable because calls to action and other interface controls can cover the message.

Design the center first

Build a central content column that can stand on its own. Put the product, primary claim, and essential brand cue inside that area, then use the upper and lower regions for atmosphere, background extension, or nonessential decoration.

Do not place a logo, product detail, or legal qualifier directly against an edge. Even when Meta doesn't visibly crop the file, the surrounding interface can make edge content difficult to read.

Separate the safe zone from the canvas

The full 9:16 canvas is not the same as the usable messaging area. Your template should show overlay guides while the designer works, then hide those guides during export. Keep them as named layers so every new variation inherits the same protection.

Use a bold focal point rather than a dense poster. Full-screen placements move quickly, and viewers need to understand the image before they decide whether to pause. A single product action, benefit, or visual contrast generally gives the composition more breathing room than a list of every selling point.

Test both placements

Facebook Stories and Instagram Stories can display the same file, but the surrounding experience may not feel identical. Preview the asset in Ads Manager for each selected placement and check the top, bottom, and side edges at actual mobile scale.

If a feed concept needs substantial rewriting to work vertically, create a new vertical composition. A 9:16 asset should feel native to a full-screen surface, not like a 4:5 image stretched into a taller box.

Carousel and Multi-Image Ad Formats

Carousel production requires a shared visual system across every card. 1:1 at 1080 × 1080 px remains the practical standard for carousel cards. Build the files from a common template so the selected placements receive consistent dimensions and treatment without manual resizing.

The production risk extends beyond technical approval. Cards can look disconnected when their horizon, product scale, text position, or background treatment changes from one swipe to the next. Compression can also make fine type and thin product edges less distinct, so prioritize clear shapes and readable hierarchy.

Keep the card system stable

Create one master card template, then change only the content that needs to vary. Lock the logo position, type hierarchy, button treatment, and product padding. Product images can change, but inconsistent scale should be deliberate rather than an export accident.

Use the same export settings for the complete batch. Predictable filenames should include the product, campaign angle, card position, and ratio. This makes it easier to replace one asset without breaking the sequence or uploading an outdated version.

Choose carousel when sequence adds meaning

Carousel suits offers that need ordered explanation, product comparison, or several connected benefits. A single-image ad is usually cleaner when one visual and one action communicate the proposition.

Do not combine unrelated compositions just because Ads Manager accepts multiple files. A technically valid carousel can still feel disjointed when its cards use different visual languages. Keep a shared background approach, type scale, and focal-point logic across the set.

Watch the first card

The first card controls the initial stop decision. Make the offer understandable without a swipe, then let later cards add proof, detail, or additional benefits. A decorative cover can hide the strongest selling information from people who never continue.

Preview the full sequence in Ads Manager before publishing. Check card order, crops, text legibility, and image quality on mobile, then replace individual files through the same preset rather than resizing them by hand.

Safe Zones and Text Placement Guidelines

A correctly sized file can still underperform as a production asset if its critical elements sit where Meta's interface or a crop can cover them. Safe-zone planning should begin in the design template, not during the final Ads Manager review.

For feed images, keep the main subject and essential message away from the outer edges. The exact margin depends on the composition, but a centered hierarchy gives the platform more tolerance if the preview changes across inventory. Logos should remain readable without touching the boundary, and product silhouettes shouldn't rely on a thin edge contour that compression can erase.

Use a placement-aware hierarchy

Ask three questions before export:

What must be seen first? Put the product or primary visual focus in the most stable part of the frame.
What can be covered? Move decorative copy, secondary labels, and background accents toward the vulnerable edges.
What can disappear without breaking the ad? If the answer is “nothing,” the layout is too dependent on edge content.

For 9:16 assets, preserve a clear center and keep important content away from the top and bottom interface areas. The vertical infographic above provides a useful template reference, but your team should also verify the live preview because interface treatment can change by placement and format.

Reduce mobile reading effort

Text density creates a separate risk from cropping. Small paragraphs may remain inside the canvas yet fail at phone size. Replace multiple lines of explanation with one strong claim and let the primary text field carry supporting detail.

A useful visual test is to view the exported file at the size your buyer will encounter it. If the logo, price, or main benefit requires zooming, redesign it. Don't solve a readability problem by adding more weight, outlines, and shadows until the image becomes visually noisy.

Production test: Hide every nonessential layer. If the remaining product, claim, and brand cue still communicate the offer, the safe-zone structure is doing its job.

File Formats, Compression, and Upload Validation

Dimensions are only part of production. The export format affects how an image holds up after Meta processes it, and the static asset limit is 30 MB. Choose JPG for photography, gradients, or textured backgrounds. Choose PNG for sharp typography, flat color blocks, transparency, or fine graphic edges.

A clean source file still matters more than the format. Export once from the master design rather than reopening and resizing an already compressed JPG. Each additional export can soften text, introduce halos around high-contrast objects, and muddy dark details. Product packaging, small logos, and fine labels show these defects quickly.

Compression failure points

Inspect the actual exported file at mobile viewing size. Check lettering, product edges, gradients, and dark areas against the master. If a JPG produces visible blocks or ringing around text, raise its quality setting or use PNG when the design is mostly graphic. Large photographic PNGs can create unnecessarily heavy files, so match the format to the artwork instead of applying one preset to every creative.

Store source files and generated assets with clear access controls. Review those practices against your privacy policy reference, especially when files include customer information, unreleased packaging, or client-owned brand materials.

Validate before Ads Manager

Use this preflight before handing files to media buying:

Confirm pixel dimensions and aspect ratio.
Confirm the file is JPG or PNG.
Check the file size against the 30 MB cap.
Open the export outside the design tool.
Inspect text, edges, gradients, and transparent areas.
Review every placement preview in Ads Manager.

An upload warning may be a recommendation rather than a rejection. Read the message, then judge the rendered preview. If Meta's crop, processing, or placement treatment makes the offer harder to understand, return to the master file and adjust the export rather than uploading repeated variations blindly. Keep the validated files separate from working drafts so production teams do not select an outdated or partially compressed version.

Export Presets and Production Workflow Tips

A reliable creative operation starts with presets, not heroic last-minute resizing. Set up three named outputs: 1:1 at 1080 × 1080 px, 4:5 at 1080 × 1350 px, and 9:16 at 1080 × 1920 px. Use JPG or PNG for static assets and keep each image within Meta's 30 MB limit.

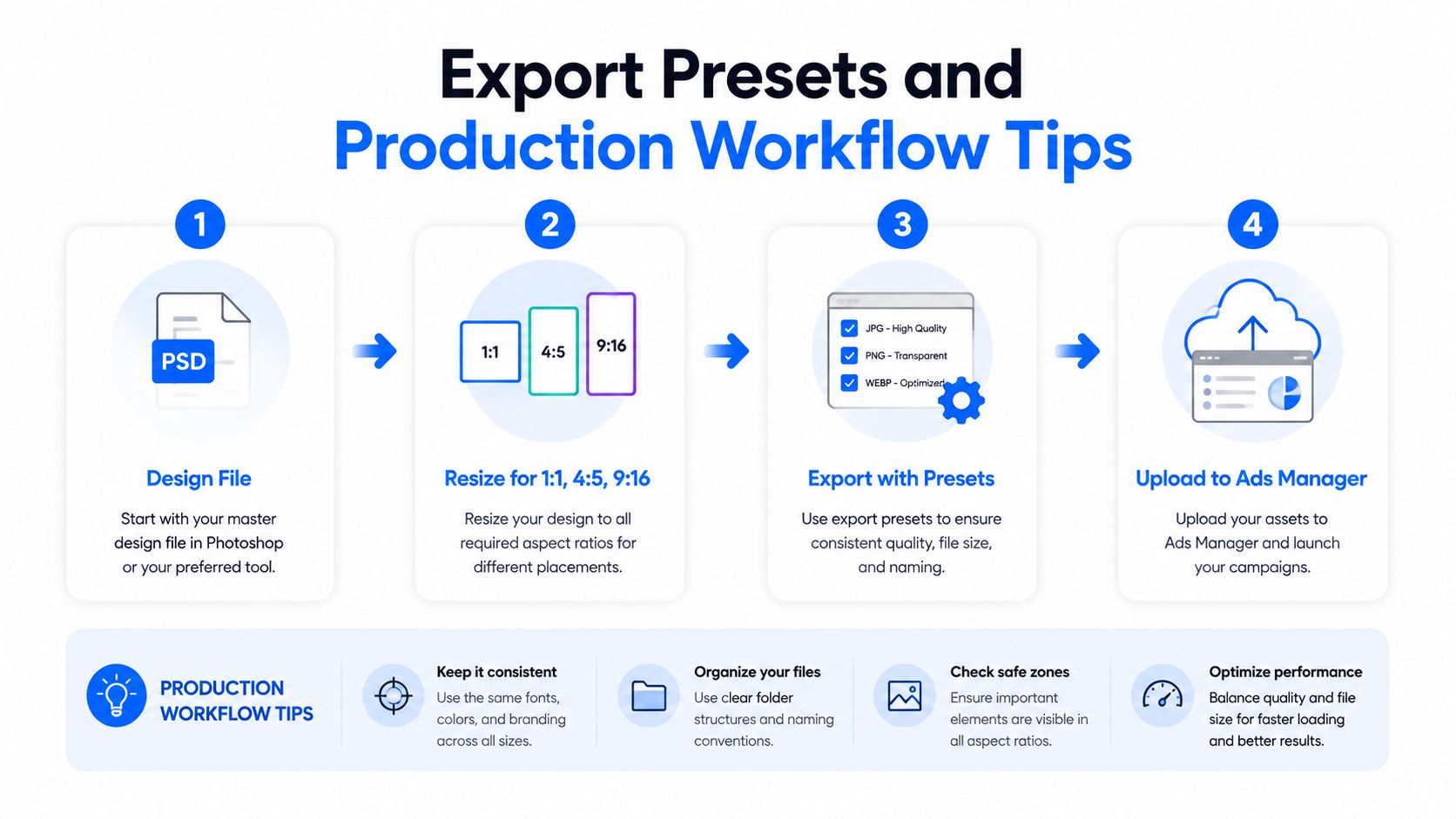

A four-step infographic illustrating the workflow for designing, resizing, exporting, and uploading Facebook ad assets.

Set up the master file

Create one design file with separate artboards or frames for each ratio. Add safe-zone guides to the vertical frame and keep brand elements in reusable components. The product layer, headline layer, and background treatment should be easy to edit without rebuilding the composition.

Use a naming convention that tells the next person what they're opening. Include the brand or product, campaign angle, concept identifier, ratio, and revision status. A clear filename prevents accidental uploads of an older crop.

Batch the predictable work

Generate all ratios from the same approved concept, then review each one as its own design. Don't assume that an automatic resize preserved the visual focal point. Adjust scale, line breaks, and spacing where the new canvas changes the reading order.

For teams using design software, saved export settings in Figma, Adobe Photoshop, or Adobe Express can standardize output. For teams using a creative production platform, ProdSnap can generate Meta-ready image outputs across 1:1, 4:5, and 9:16 while keeping product and brand inputs organized for iterative production.

Preserve winners as systems

When a concept works, save the structure, not only the final image. Record the layout, angle, product treatment, and ratio-specific adjustments so the next batch can evolve the idea without starting from a blank canvas.

That approach creates a reusable library of production decisions. It also helps designers distinguish a new concept from a cosmetic color change.

Quick Reference Checklist for Production Teams

在素材進入 Ads Manager 前，逐項完成以下檢查：

1:1 export: 確認正方形檔案為 1080 × 1080 px。
4:5 export: 確認動態消息檔案為 1080 × 1350 px。
9:16 export: 確認 Stories 與 Reels 檔案為 1080 × 1920 px。
Minimum dimensions: 最短邊保持 600 px 或以上，參考 Meta image sizing documentation。
Format: 照片構圖使用 JPG，清晰文字或圖像較多的版面使用 PNG。
File limit: 每個靜態圖片維持在 30 MB 以下。
Safe composition: 產品、標誌與宣稱避開邊緣及全螢幕介面區域。
Visual inspection: 開啟匯出檔，檢查文字、漸層、細節與裁切。
Placement preview: 在 Ads Manager 預覽每個選定版位。
Naming: 檔名包含產品、概念、比例與修訂狀態。
Archive: 將核准主檔與各比例版本存放在一起。

需要固定多比例輸出的團隊，可查看 ProdSnap pricing，比較適合自身流程的工具。

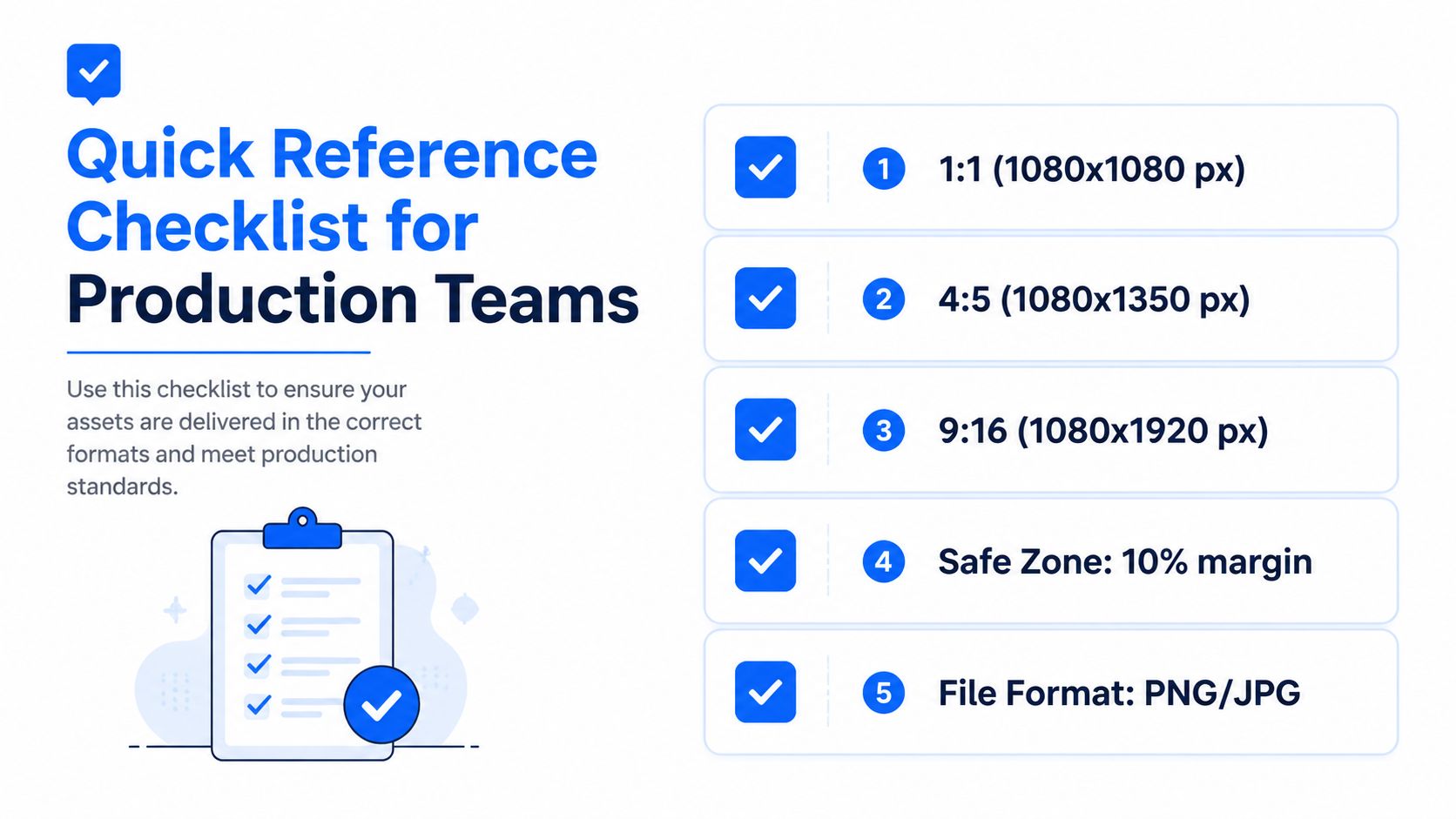

A quick reference checklist for social media production teams displaying image aspect ratios, margins, and file formats.

ProdSnap 可整理素材參考、建立品牌一致的變體，並輸出 1:1、4:5 與 9:16 的 Meta 就緒素材，減少為每個版位手動重建的工作。參閱 ProdSnap，了解它如何配合創意測試與匯出流程。
